Diaphragm ACO
A diaphragm is a flexible membrane (usually made of rubber or silicone) that flexes to move air or fluid by changing the volume inside a chamber. In many conventional aquarium air pumps (like the Hailea HAP series), the diaphragm vibrates back and forth, drawing air in and pushing it out to create airflow.
Diaphragm pumps rely on this flexible membrane as the main moving part to generate airflow.
The diaphragm’s motion draws air through one‑way valves and forces it out through the outlet tube.
These diaphragms are replaceable parts in pumps that use them.
What Hailea ACO Compressors Actually Use
However, the Hailea ACO series (e.g., ACO‑208, ACO‑308, ACO‑318, ACO‑328, ACO‑009D, ACO‑388D, ACO‑380) are not diaphragm air pumps.
These units use a piston‑driven compressor mechanism rather than a flexible diaphragm to create airflow. That means:
They do not have a large rubber diaphragm driving the air output.
Instead, an internal piston moves back and forth to pull air in and compress it before pushing it out.
This method provides higher pressure and larger volume than typical diaphragm air pumps and is why ACO compressors are often used when heavier aeration or industrial‑style compressed air is needed.
So What Replaces the Diaphragm?
In a Hailea ACO compressor, the components responsible for moving air and sealing the compression chamber are:
-
Piston & cylinder assembly — the primary moving parts that compress air.
-
Wear‑resistant materials (like SF3) inside the piston/cylinder to reduce friction and extend life.
-
Valves and seals that let air flow in one direction and keep pressure up.
-
Oil‑free design keeps compressed air clean.
Because of this design, there’s no simple diaphragm spare part like you’d replace in a traditional diaphragm style air pump.
One Exception (Older/Specific ACO Models)
There are older or specific very small Hailea ACO models (like ACO‑9720 / ACO‑9730) that did use diaphragms and for which replacement diaphragms are still sold. For example:
If your unit is one of those older, smaller ACO pump models, then diaphragm parts might exist — but for nearly all modern Hailea ACO compressors sold today, you won’t find a replaceable diaphragm part because the pump design doesn’t include one.
Why This Matters
Understanding whether your pump uses a diaphragm or a piston system helps in:
-
Troubleshooting performance issues
-
Ordering the correct spare parts
-
Deciding on maintenance or repair strategies
Traditional diaphragm pumps: Replace the diaphragm when worn. Hailea ACO piston compressors: Address piston/cylinder wear, seals or valves when performance drops.
Example Parts (General Diaphragm Spares for Other Pumps)

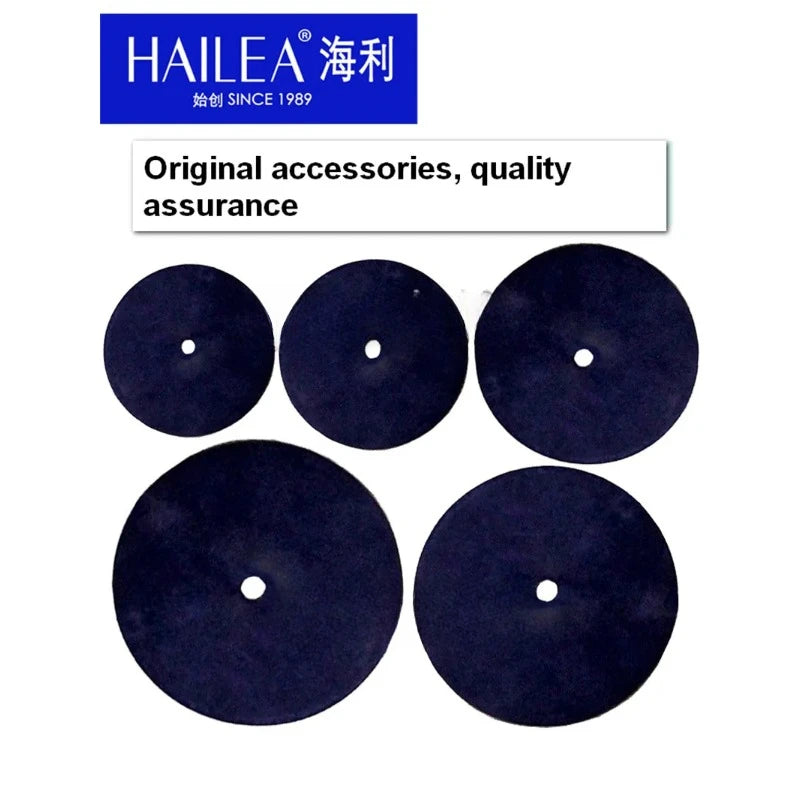

Here are general diaphragm replacement parts (not specific to Hailea ACO compressors, but illustrative of the type of diaphragms found in pumps .
These show the kind of flexible membrane parts used in diaphragm systems — but again, Hailea ACO compressors don’t use these types of diaphragms in their airflow mechanism.
Summary
-
Hailea ACO compressors generally use piston mechanisms, not rubber diaphragms, to make air.
-
That means there’s no main airflow diaphragm to replace in most ACO units.
-
Some very old or small ACO models (e.g., ACO‑9720 / ACO‑9730) did use diaphragms that can be replaced.
