Aquaforest AF Media Reactors – AF90, AF110 & AF130
Premium Universal Media Reactors for Marine Aquariums
Take control of your aquarium filtration with the Aquaforest AF Media Reactor range, a premium series of universal fluidization filters designed for efficient use with a wide variety of aquarium filtration media.
Available in AF90, AF110 and AF130 sizes, the range provides a solution for different aquarium systems and filtration requirements — from compact setups to demanding marine and reef aquariums requiring higher media capacity.
Designed by experienced engineers and aquarists, Aquaforest AF Media Reactors combine efficient water flow, flexible installation, durable acrylic construction and convenient media replacement in a professional filtration solution.
The reactors are suitable for use with activated carbon, phosphate adsorbents and zeolites. Aquaforest recommends using Carbon, Phosphate Minus and Zeo Mix together as an optimal filtration media combination.
One Reactor. Multiple Filtration Options.
The AF Media Reactors provide a versatile way to run different filtration media through a controlled fluidization process.
Suitable media includes:
- Activated carbon
- Phosphate adsorbents
- Zeolites
- Other compatible aquarium filtration media
This versatility allows you to adapt your filtration system according to the needs of your aquarium.
Choose Your Size
Select the appropriate reactor size based on your aquarium, available installation space and required filtration media capacity.
Key Features
- Premium universal fluidization media reactor
- Available in AF90, AF110 and AF130
- Suitable for marine and reef aquarium filtration
- Compatible with activated carbon, phosphate adsorbents and zeolites
- Designed for efficient filtration media flow
- Can be installed inside the sump or externally
- Highly sealed construction for external operation
- Convenient Smart-Twist opening system
- Easy-change system for quick media replacement
- Adjustable sieve height
- Internal sponges help prevent media from entering the aquarium
- High-quality acrylic construction
- Resistant to scratches and discoloration
- Hose ends included
- Designed by experienced engineers and aquarists
Benefits
Efficient Media Filtration
The fluidization design allows water to pass efficiently through compatible filtration media, helping maximise contact between the aquarium water and the media.
Flexible Media Selection
Use the reactor with different filtration media depending on your aquarium's requirements. The AF range is designed for activated carbon, phosphate adsorbents and zeolites, providing excellent flexibility when building your filtration system.
In-Sump or External Installation
The highly sealed design allows the reactors to be positioned inside the sump or outside the aquarium, making them particularly useful where sump space is limited.
Easy Media Changes
The Smart-Twist opening system provides convenient access to the reactor, while the easy-change design makes replacing filtration media quick and straightforward.
Adjustable Sieve
The adjustable sieve height allows the internal configuration to be adapted to the quantity and type of media being used.
Keeps Media Contained
Internal sponges help prevent filtration media from escaping the reactor and entering the aquarium water.
Durable Construction
The reactors are manufactured from high-quality materials designed to resist scratches and discoloration, making them suitable for long-term aquarium use.
Smart-Twist Opening System
The Smart-Twist design provides quick and convenient access to the reactor's media chamber.
Simply open the reactor, replace or refresh the filtration media and secure the lid again. This makes routine maintenance easier and reduces the time required to service the reactor.
Adjustable Internal Configuration
The AF Media Reactors feature an adjustable sieve system, allowing the internal space to be configured according to the amount and type of filtration media being used.
The internal sponge system also helps keep media contained while allowing efficient water flow through the reactor.
Aquaforest's current product guide highlights the reactor's easy-change system, adjustable sieve heights and multiple internal sponges designed to help prevent media from entering the aquarium.
Recommended Aquaforest Media
For an Aquaforest filtration setup, the manufacturer recommends combining:
- Aquaforest Carbon
- Aquaforest Phosphate Minus
- Aquaforest Zeo Mix
The appropriate media combination and quantity should always be selected according to your aquarium's individual requirements and the instructions supplied with each filtration medium.
How to Use
-
Choose the correct reactor size: Select the AF90, AF110 or AF130 according to your aquarium and filtration requirements.
-
Select your filtration media: Choose compatible media such as activated carbon, phosphate adsorbent or zeolite.
-
Open the reactor: Use the Smart-Twist system to access the media chamber.
-
Add the media: Place the required quantity of filtration media inside the reactor.
-
Adjust the sieve: Set the sieve height according to the quantity and type of media.
-
Check the sponges: Make sure the internal sponges are correctly positioned to help retain the media.
-
Connect the reactor: Attach the appropriate hoses using the supplied hose ends.
-
Position the reactor: Install it inside the sump or externally according to your aquarium setup.
-
Start the water flow: Adjust the flow according to the requirements of the filtration media.
-
Monitor the system: Regularly inspect the reactor and filtration media and replace or refresh the media when required.
Always follow the manufacturer's instructions for the specific filtration media being used.

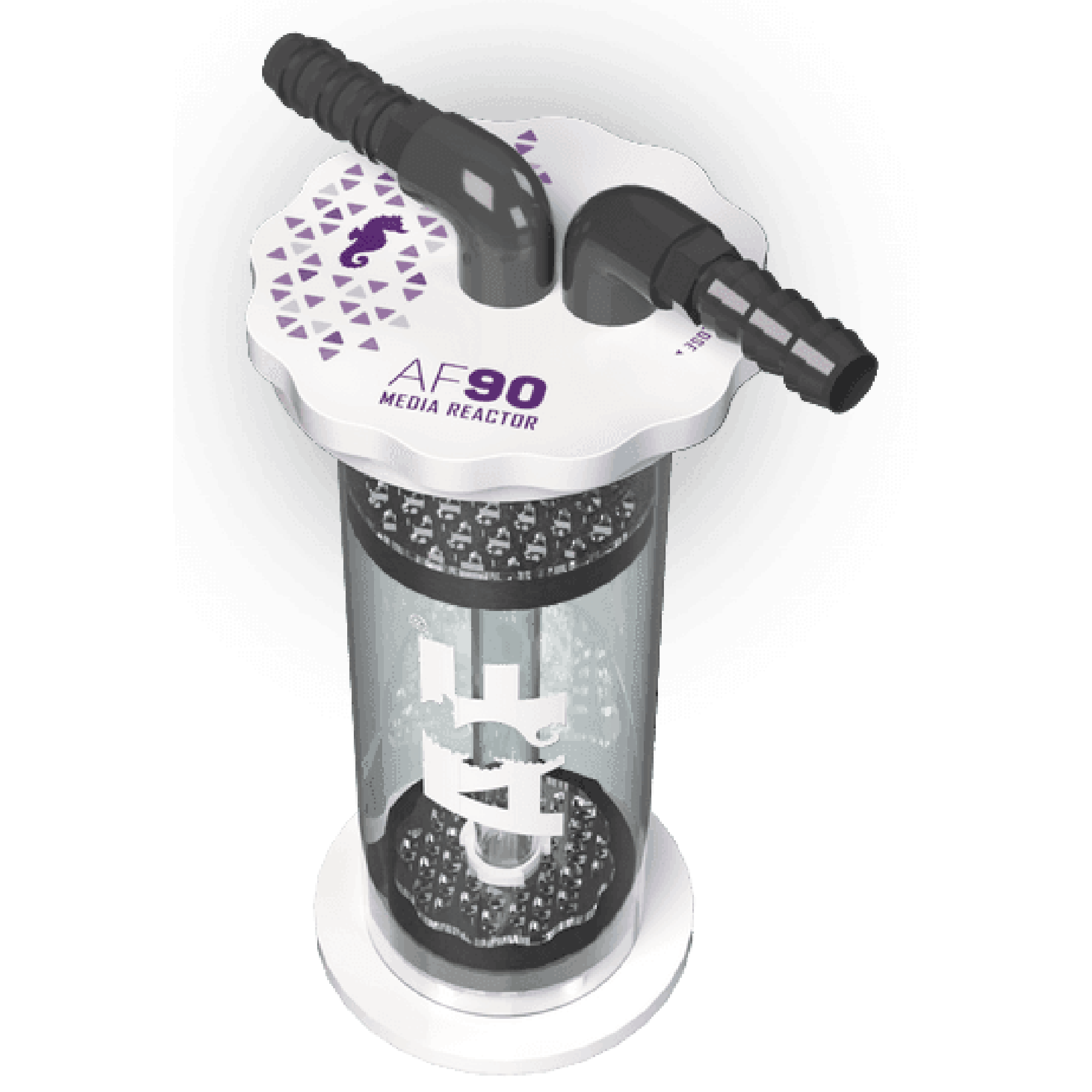

AF90 – Compact Capacity
The AF90 is the smallest reactor in the range, offering a 1,300 ml / 44 fl oz capacity in a compact 90 mm acrylic tube.
It is a practical choice where installation space is limited or where a smaller quantity of filtration media is required.
AF90 Specifications:
- Capacity: 1,300 ml / 44 fl oz
- Height: 31 cm / 12.2″
- Base diameter: 13 cm / 5.1″
- Acrylic tube diameter: 90 mm / 3.5″
- Connectors: 16 mm / 5/8″

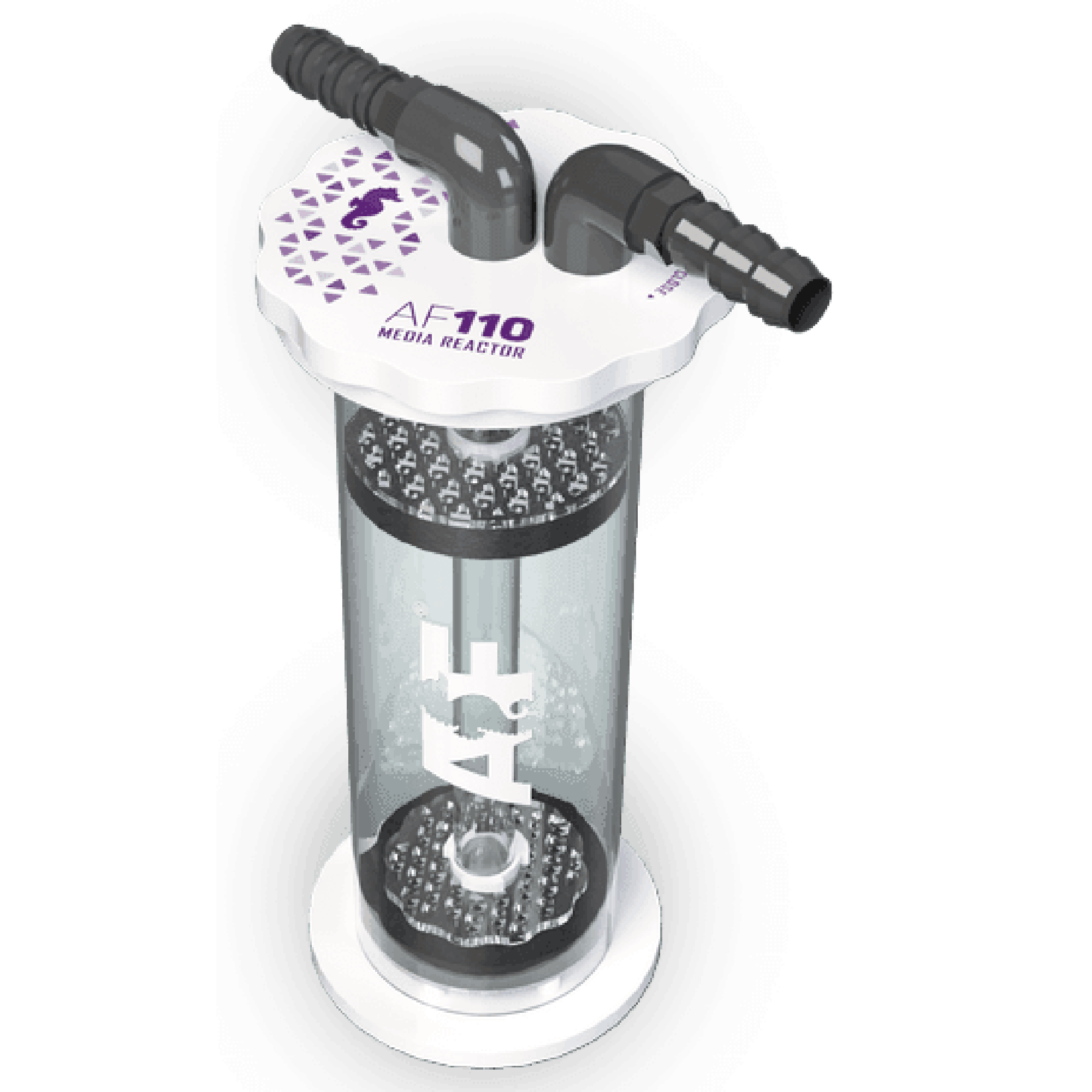

AF110 – Medium Capacity
The AF110 provides a larger 2,800 ml / 95 fl oz capacity, making it a versatile option for reef aquariums requiring more filtration media while still maintaining a relatively compact footprint.
AF110 Specifications:
- Capacity: 2,800 ml / 95 fl oz
- Height: 38 cm / 15″
- Base diameter: 14.5 cm / 5.7″
- Acrylic tube diameter: 110 mm / 4.3″
- Connectors: 20 mm / 0.8″

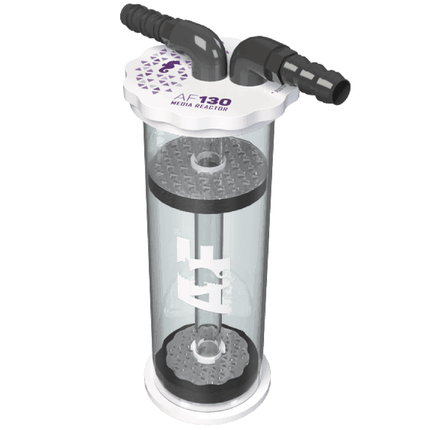

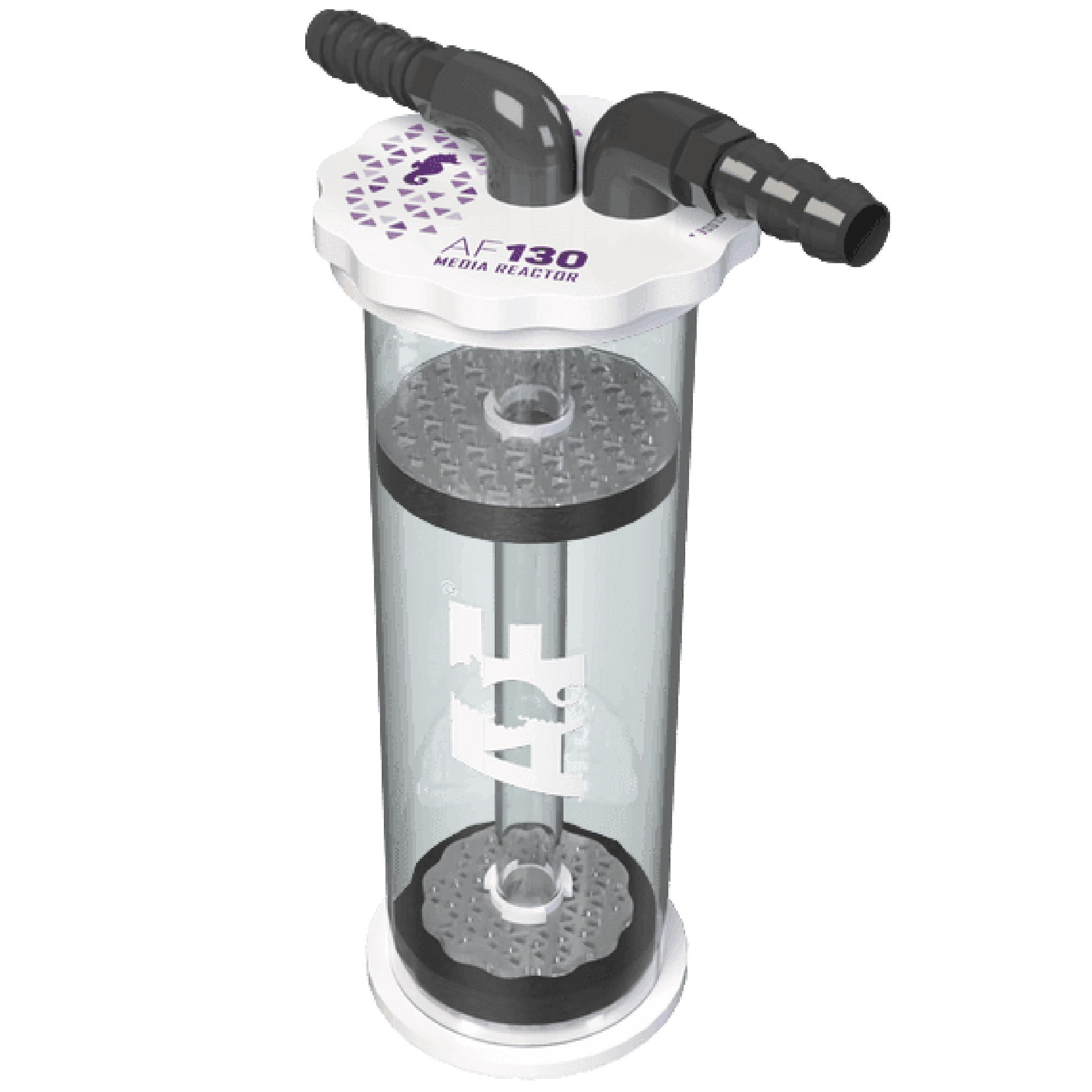

AF130 – Maximum Capacity
The AF130 is the largest model in the range, providing an impressive 5,000 ml / 169 fl oz capacity.
Its large media chamber makes it particularly suited to larger systems and demanding filtration applications where a greater quantity of media is required.
AF130 Specifications:
- Capacity: 5,000 ml / 169 fl oz
- Height: 45.5 cm / 17.9″
- Base diameter: 16.3 cm / 6.4″
- Acrylic tube diameter: 133 mm / 5.2″
- Connectors: 23 mm / 1″
Product Comparison
Which AF Media Reactor Should You Choose?
AF90
Choose the AF90 when you need a compact reactor with a smaller media capacity or have limited installation space.
AF110
Choose the AF110 when you need additional media capacity while maintaining a balanced size for your filtration system.
AF130
Choose the AF130 when maximum media capacity is the priority. With 5 litres of capacity, it is the largest option in the AF Media Reactor range.
Important Information
- Ensure the reactor is installed securely and all hose connections are properly fitted.
- When operating externally, carefully check all connections and seals before use.
- Select the appropriate reactor size according to your aquarium and filtration requirements.
- Flow rates should be adjusted according to the specific filtration media being used.
- Regularly inspect and maintain the reactor and internal sponges.
- Replace filtration media according to the manufacturer's recommendations.
Product Details
Brand: Aquaforest
Product Range: AF Media Reactors
Models: AF90 / AF110 / AF130
Type: Universal fluidization media reactor
Application: Marine & reef aquariums
Compatible Media: Activated carbon, phosphate adsorbents and zeolites
Installation: In-sump or external
Opening System: Smart-Twist
Media Adjustment: Adjustable sieve
Media Retention: Internal sponge system
Construction: High-quality acrylic
Recommended Media: Carbon, Phosphate Minus & Zeo Mix
Professional Filtration for Every Reef System
Whether you need a compact 1.3-litre AF90, versatile 2.8-litre AF110, or high-capacity 5-litre AF130, the Aquaforest AF Media Reactor range provides a reliable and flexible way to run essential filtration media.
With Smart-Twist access, adjustable sieve height, internal media-retaining sponges, durable acrylic construction and flexible in-sump or external installation, the AF range is designed to make aquarium filtration more efficient and maintenance more convenient.
Choose your size. Choose your media. Take control of your reef filtration.
